Door Operator

Door Operator

1、High efficient and energy saving

Using permanent magnet synchronous motor, featured by high efficient driving , wide torque range and low running noise.

2、Safe and reliable

Equipped with car door lock, the car door can not be opened in non-level zone. The door hanger has a safety hook to prevent collision and fall off, passed 45kg soft pendulum test, which conforms to GB/T7588.1/2 standard requirement.

3、Data communication

Standard I/O port. Reserving CAN communication port. Equipped with data communication function of master control system. Realizing the solutions of elevator digitalization.

4、Easy debugging

Full-closed-loop control technology. High control precision. Automatic generation of door opening and closing curves. One-key debugging. Mobile phone Bluetooth debugging and remote debugging are available.

5、Driven door weight:Driven door weight

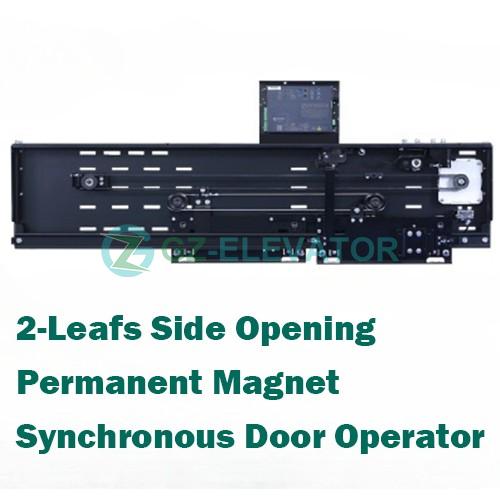

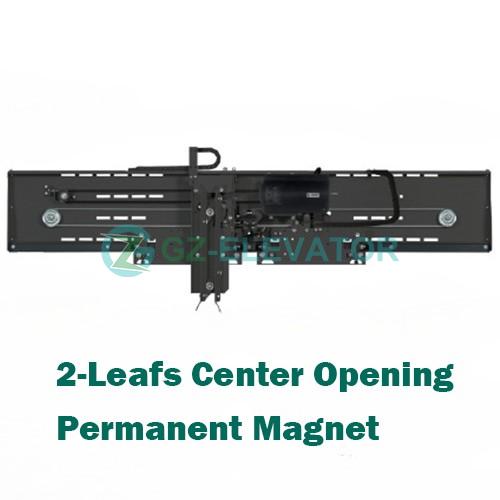

Driven weight of landing door and car door ≤ 200kg.（2-Leafs Center Opening Permanent / 2-Leafs Side Opening Permanent Magnet Synchronous Door Operator）

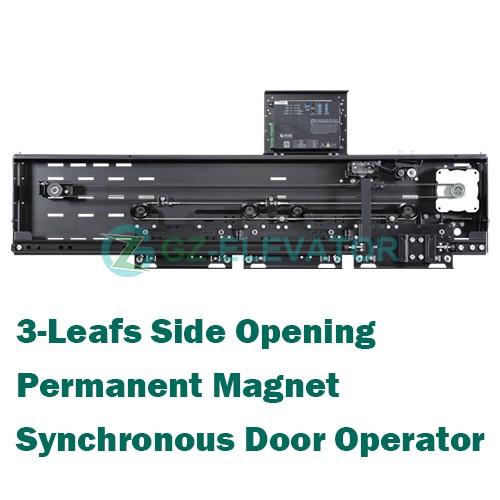

Driven weight of landing door and car door ≤ 300kg.（3-Leafs Side Opening Permanent Magnet Synchronous Door Operator）

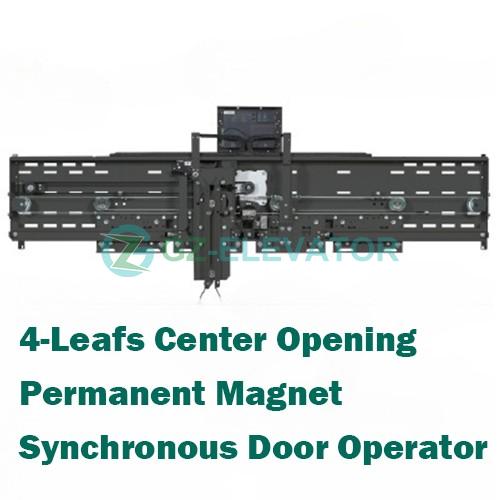

Driven weight of landing door and car door ≤ 320kg.（4-Leafs Center Opening Permanent Magnet Synchronous Door Operator）

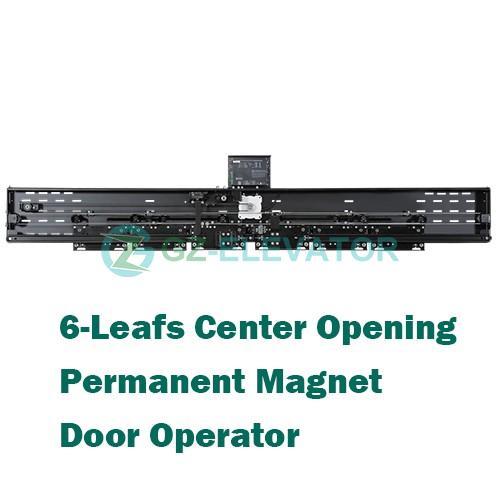

Driven weight of landing door and car door ≤ 480kg.（6-Leafs Center Opening Permanent Magnet Door Operator）

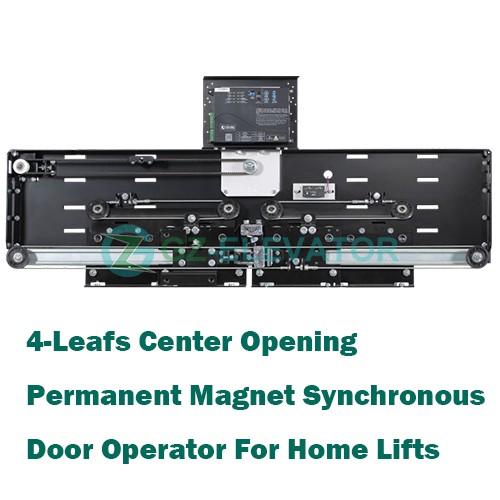

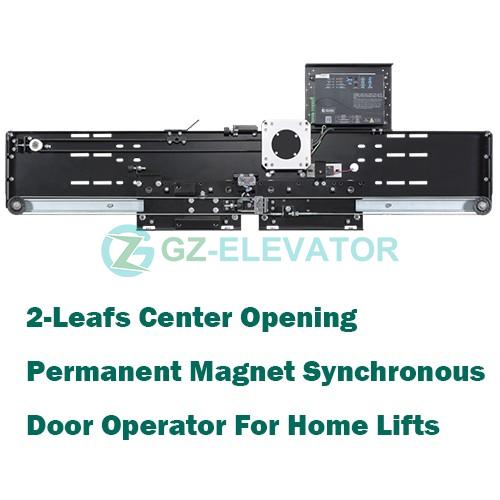

Driven weight of landing door and car door ≤ 160kg.（2/ 4-Leafs Center Opening Permanent Magnet Synchronous Door Operator For Home Lifts）

6、High utilization rate of shaft:

Door operator structure is compact, lowering requirements to shaft space, adapting to small shaft and wide opening door.
